VE.Direct
Schematics

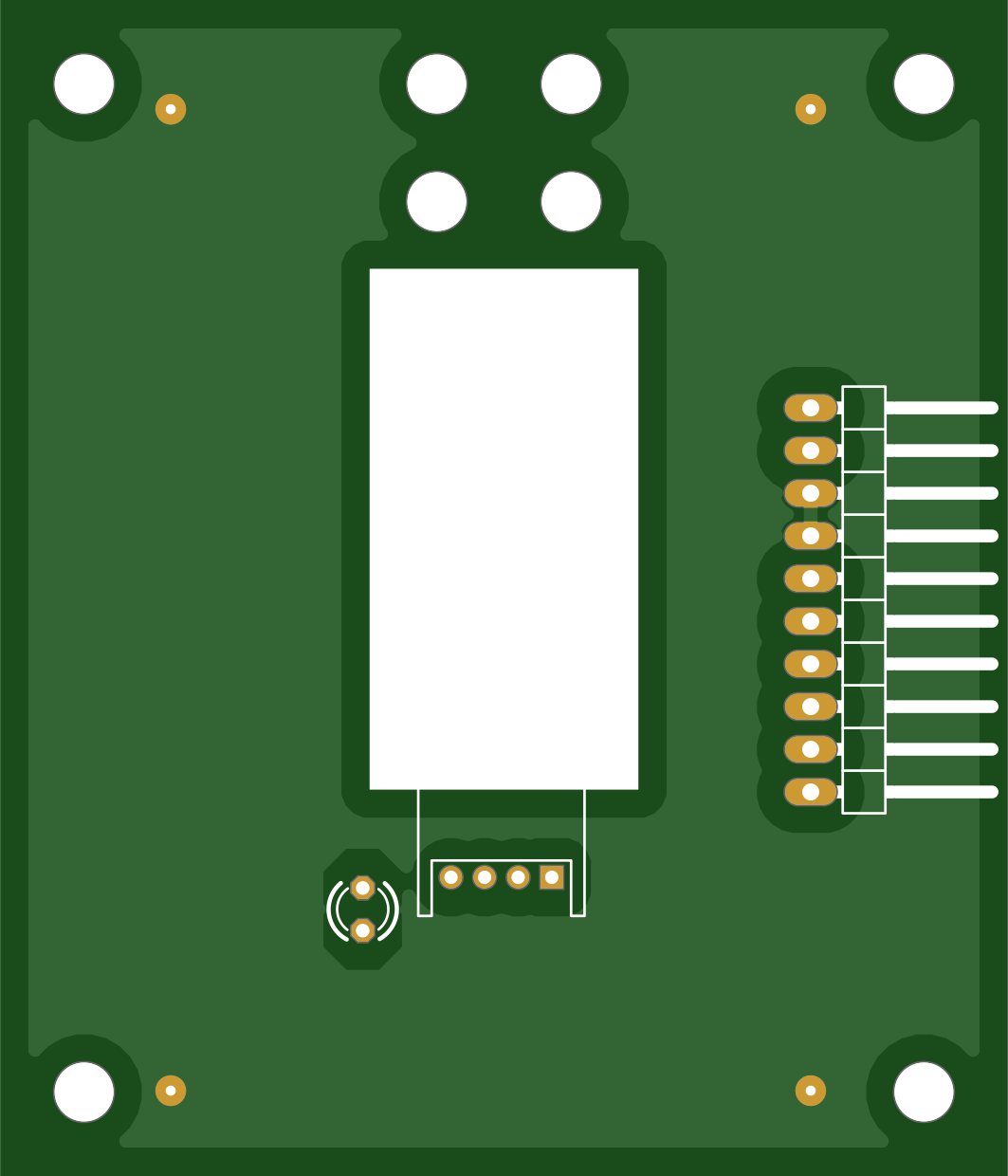

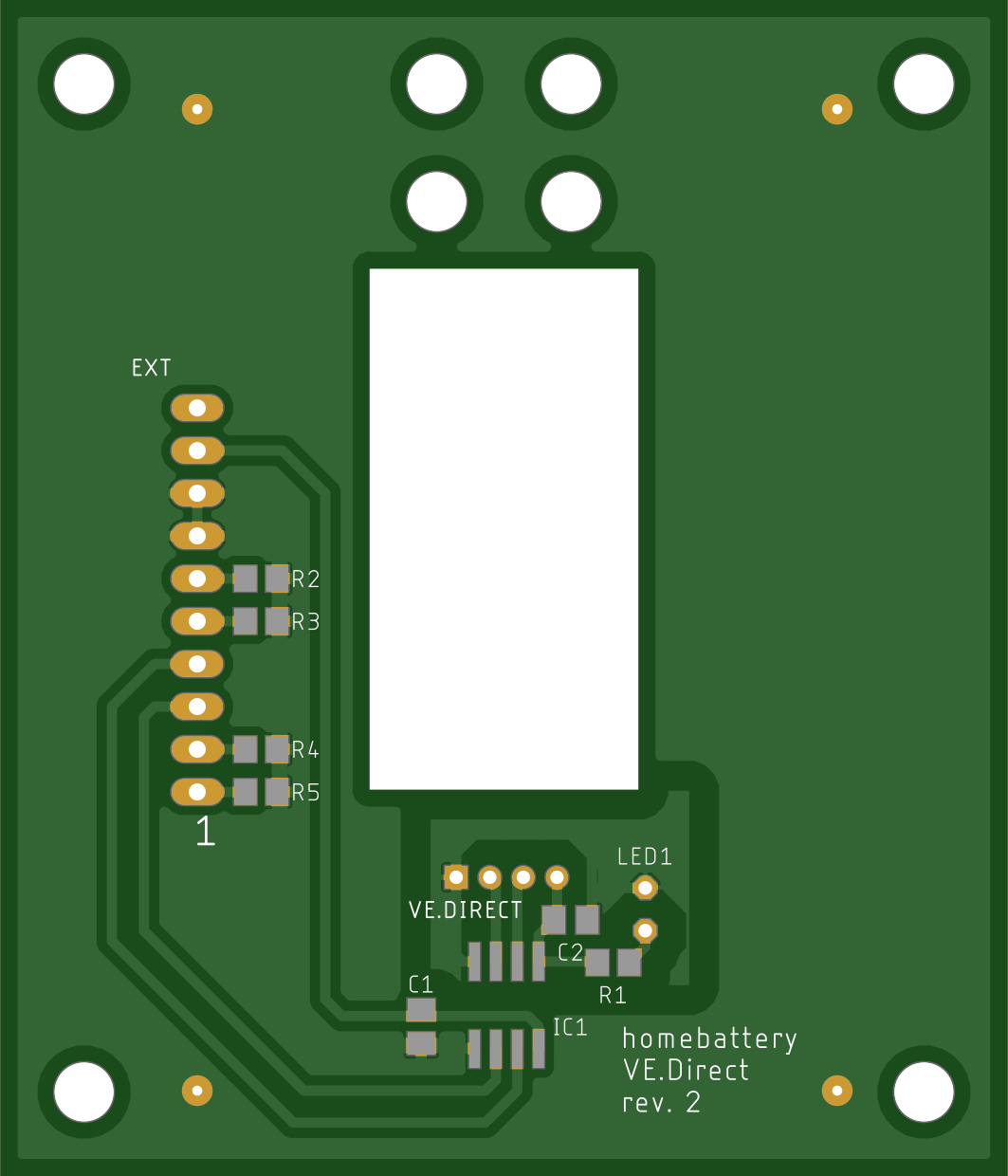

PCB
Bill of materials
Name |
Description |
Number |
Reichelt name / Remark |
|---|---|---|---|
IC1 |
ADUM 1201 BRZ SO-8 digital isolator |
1 |
ADUM 1201 BRZ |
C1, C2 |
MLCC capacitor 100n 50V 100n G0805 |
2 |
KEM X7R0805 100N |
R1 |
SMD resistor 4.7k 1/8W 0805 |
1 |
WAL WR08X4701FTL |
R2-5 |
SMD resistor 10k 1/8W 0805 |
4 |
WAL WR08X1002FTL |
LED1 |
LED red 3mm 60° 150 mcd 20mA |
1 |
3004R1D-EHB-A |
EXT |
pin headers 10-pin angled RM 2.54 |
2 |
W+P 946-14-010 |
EXT |
Dupont cable female 10-pin RM 2.54 15cm |
1 |
buy one from ebay or alixpress |
VE.DIRECT |
JST male connector 4-pin RM 2.0 S4B-PH-K-S |
1 |
JST PH4P ST90 |
